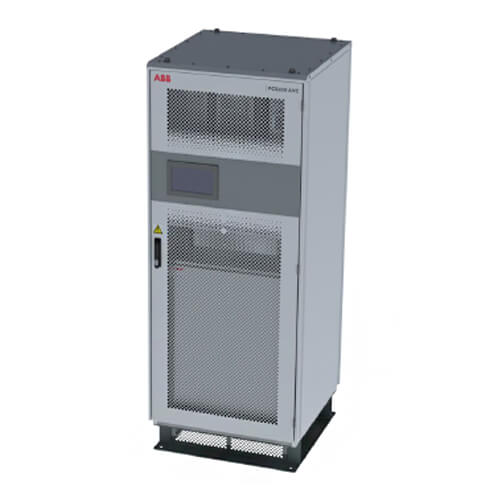

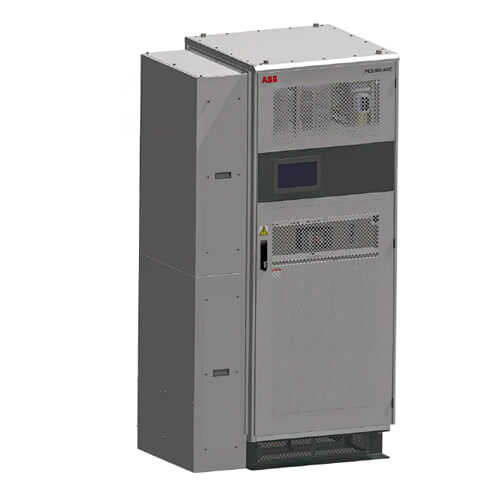

Active Voltage Conditioner PCS100 AVC-40
PCS100 AVC-40 ACTIVE VOLTAGE CONDITIONER
The ABB PCS100 AVC-40 is an inverter-based system that protects sensitive industrial and commercial loads from voltage disturbances.
Providing fast, accurate voltage sag and surge correction as well as continuous voltage regulation and load voltage compensation. The PCS100 AVC-40 has been optimally designed to provide equipment immunity from power quality events on the supply network.
FEATURES
No Energy Storage – Increased system reliability with minimized maintenance.
Very High Efficiency – Typically >98% even on partial loading.
Continuous Online Regulation – Continuous regulation within ±10% with response less than 250 μs and correction in less than ½ cycle.
Industrial Design – Rugged overload capability, industrial grade fault capacity, designed for industrial loads.
Small Footprint – Industry leading power density.
Regenerative Load Support – Bidirectional power module design allows connection of regenerative loads such as lifts and cranes.
Internal Bypass – Redundant internal bypass design guaranteeing continuity of load supply in case of PCS100 AVC-40 fault.
Connectivity – Ethernet, Modbus TCP, Integrated web server, E-mail notifications
Modular Construction – Proven PCS100 power converter platform, with more than 1800 MVA installed base, enabling fast and easy maintenance.
Sophisticated Control Software – Based on 20 years voltage conditioning industry experience.
